W+D BB300 10k, Reference 70298
Description

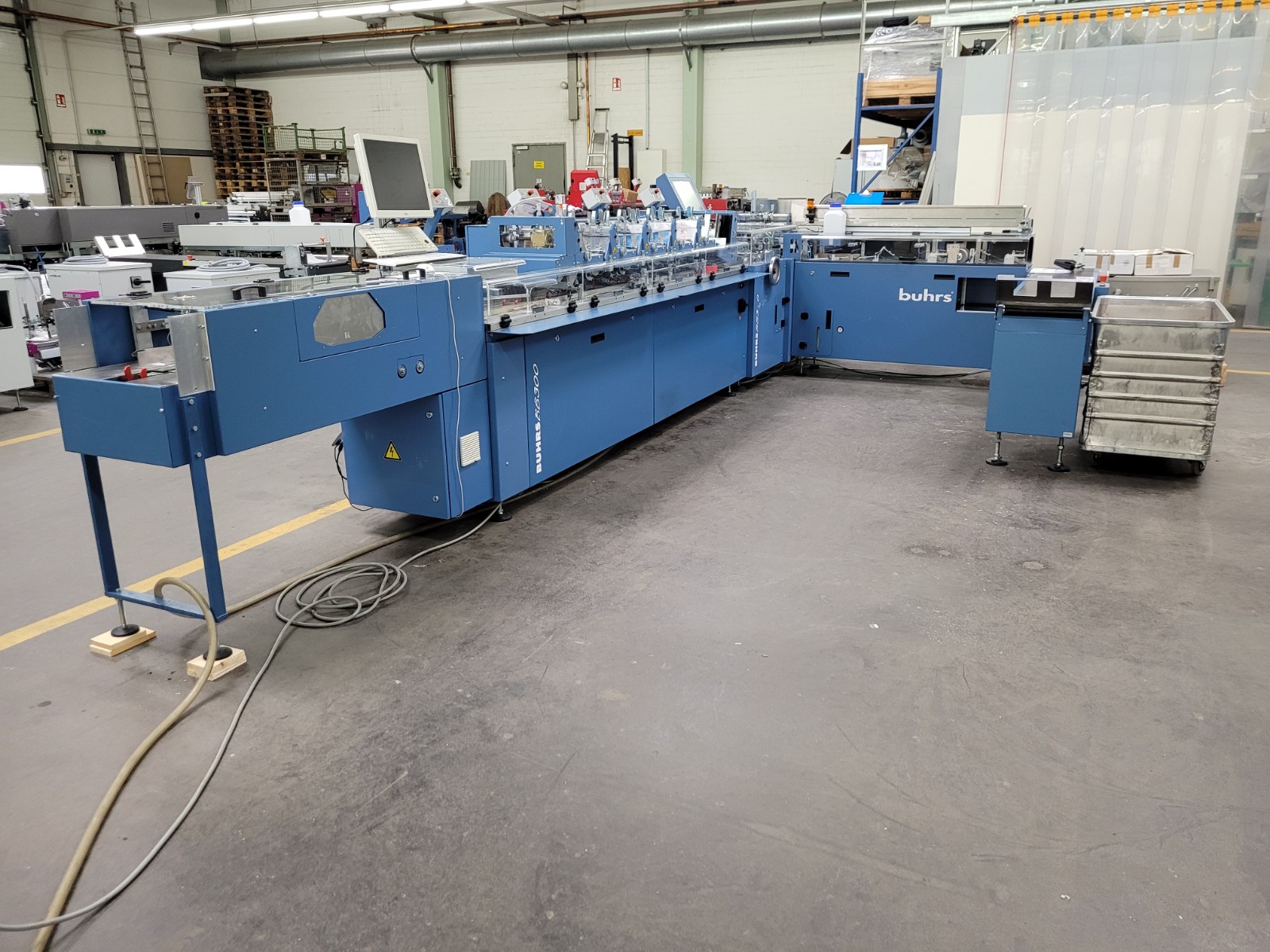

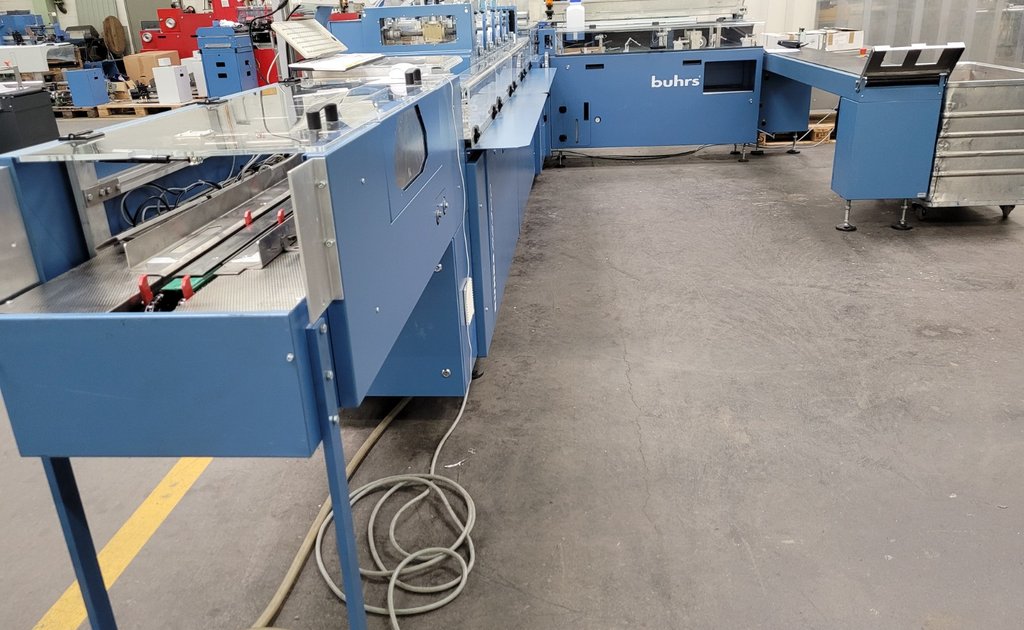

Multiformat Inserting Machine BB300 10K
Model
W+D BB300 10k
Year
2011
Envelope Type
Working From
Window
No
Printing
No
Technical Data
Envelope Formats: min.105x162mm, max. 250x353mm
Product Formats: min.100x148 mm, max. 229x324 mm
Output: up to 10.000 envelopes per hour
Cycles: approx. 24 Mill turns
Configuration

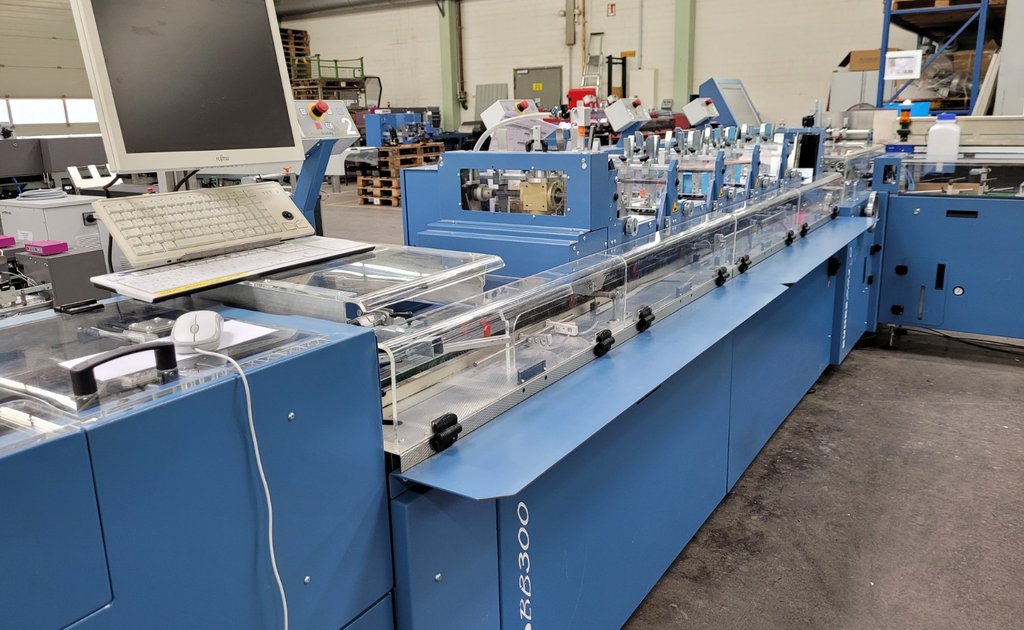

- 8 base gathering section
- BSC 2.0 controlling system (upgrade to BSC 3.0 by request)
- 15” panel
- Special extended chain return allows connection of the AT351or system channel
- Envelope autoloader
- „D/V pump“ with noise protection

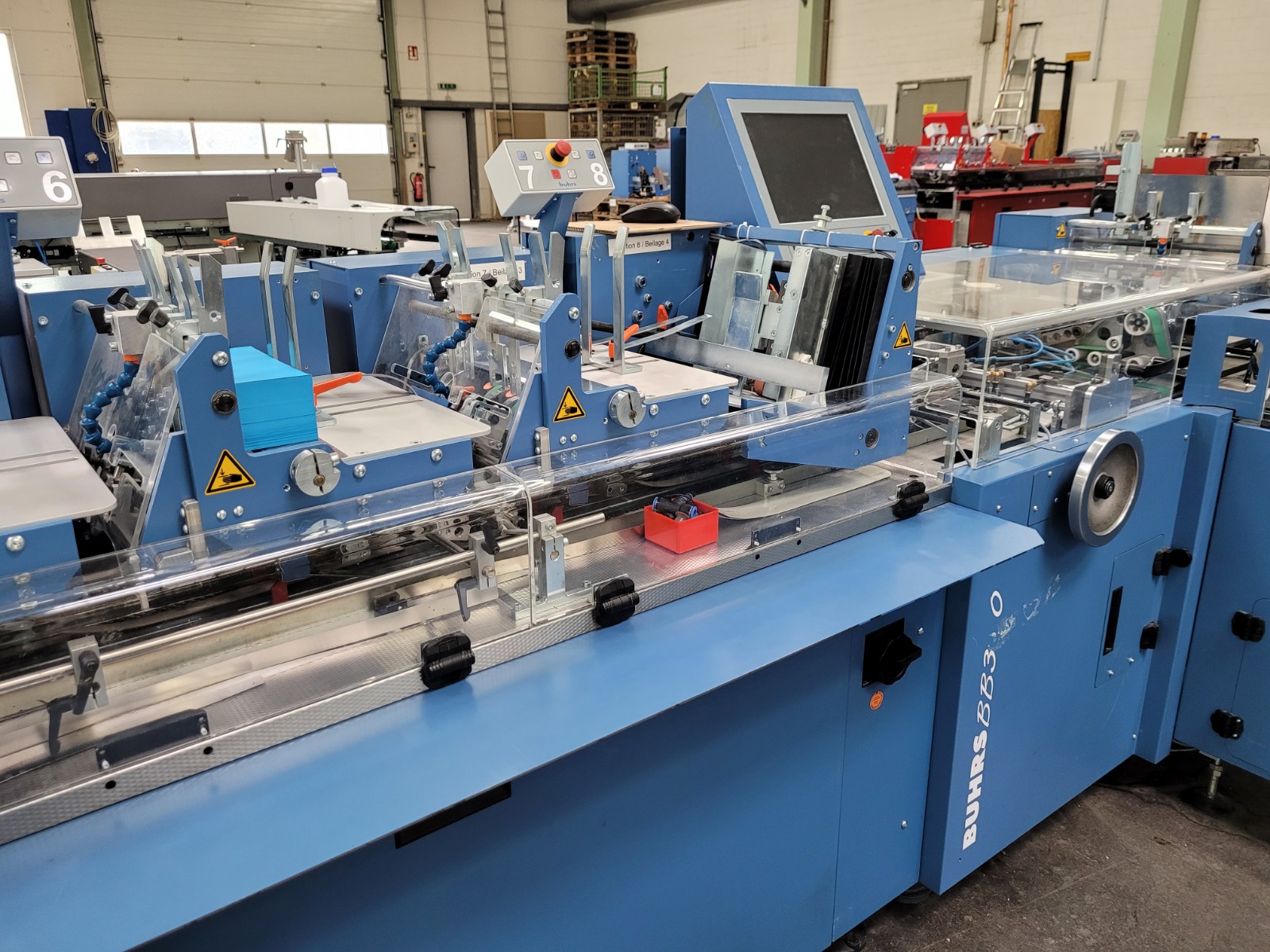

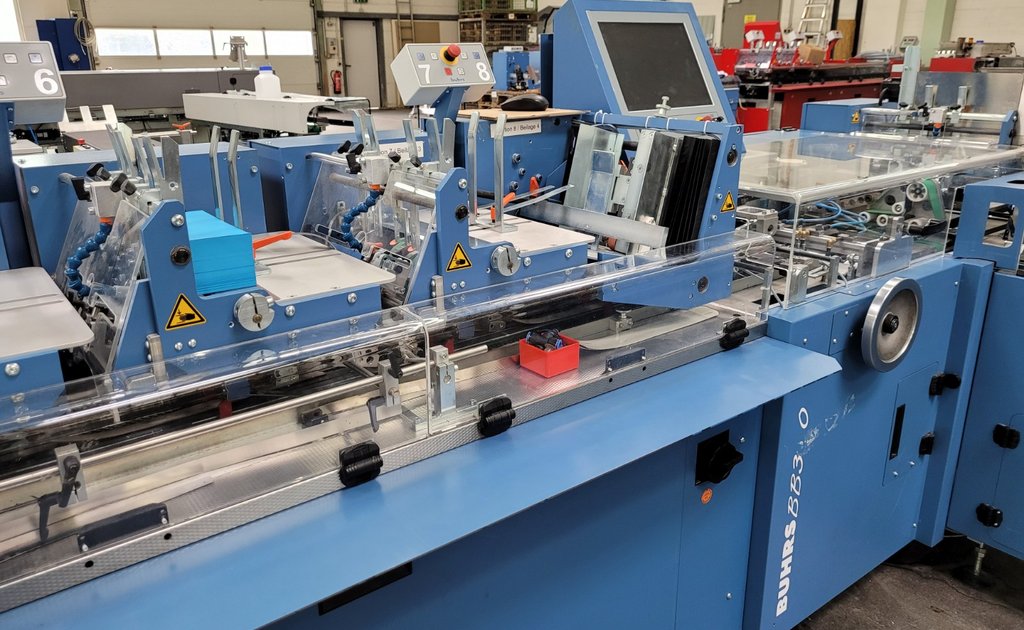

- 5x AT25 rotary feeder; pos. 3 - 7
- 2x of them with batch feed on AT25; pos. 5 - 6
- 1x shuttle feeder AS25 (max 8.000 cycles/h); pos. 8

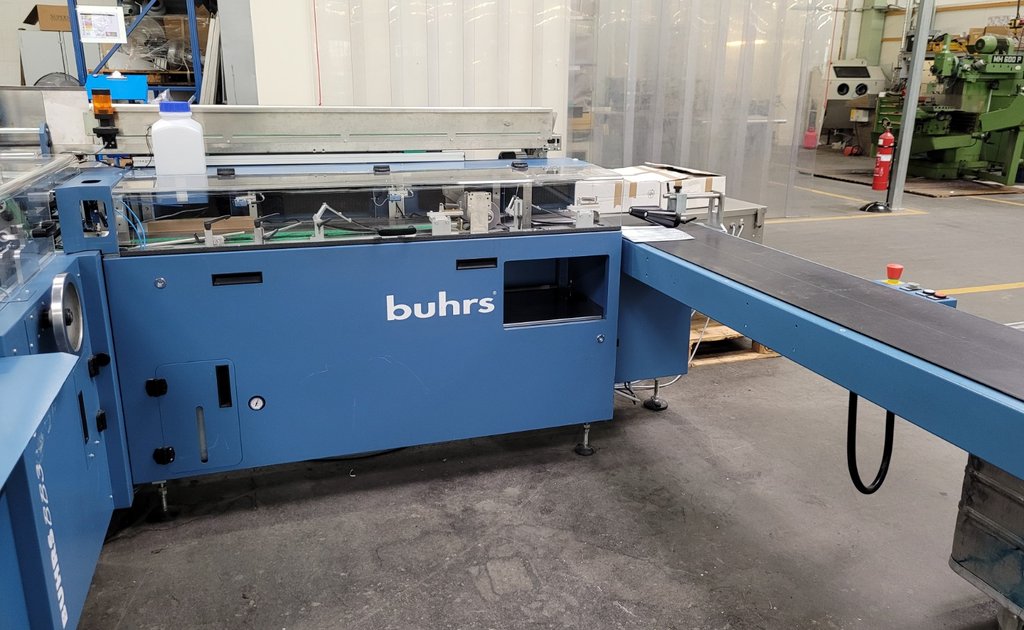

- Vacuum closing section with integrated divert gate
- Conveyer belt 2,5m
Machine Condition
Will be reconditioned
