W+D 202.00, Reference 3928

Description

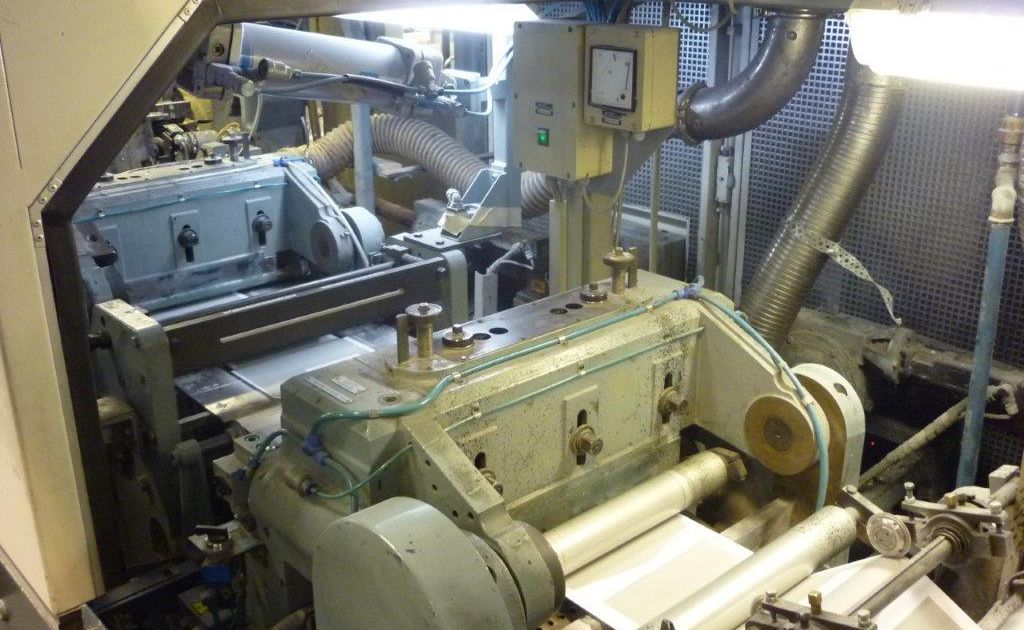

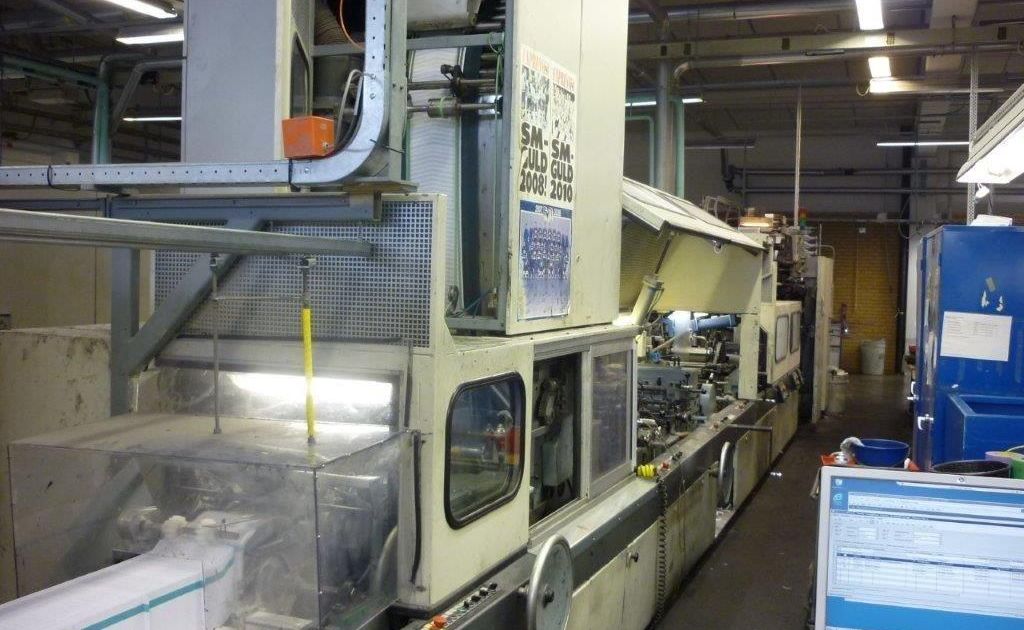

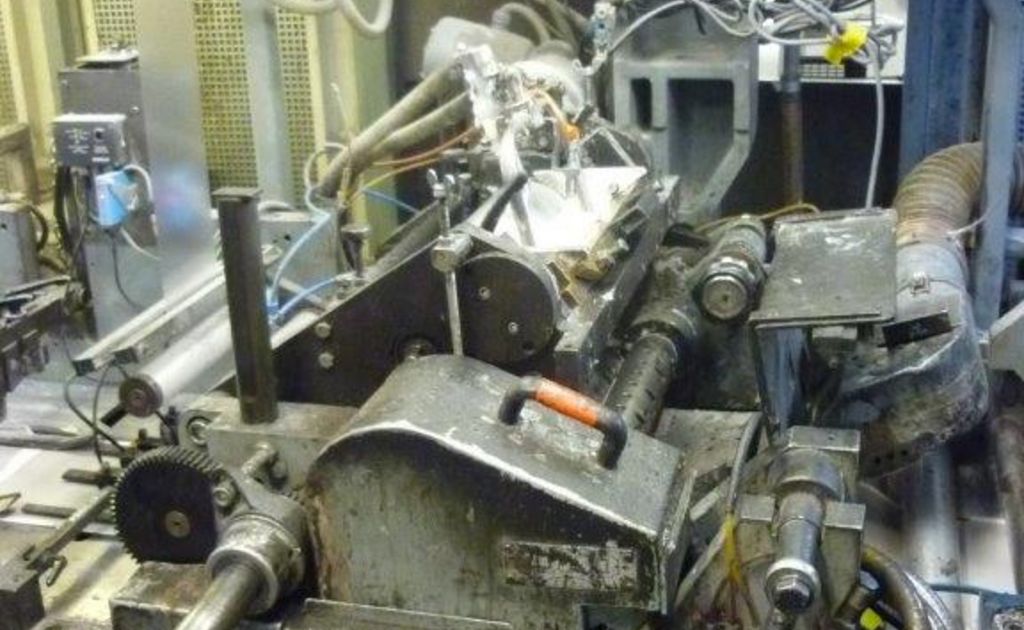

High-speed reel-fed envelope making machine for the production of envelopes with printing and window
Model
W+D 202.00
Year
1994
Envelope Type
Envelopes
Working From
Reels
Window
Yes
Printing
4 colour stack type printing stand
Technical Data

Size range:

  • min. 89 x 120mm, max.190 x 353mm

Up to 1.200 envelopes/min (according to W+D catalogue)

Configuration

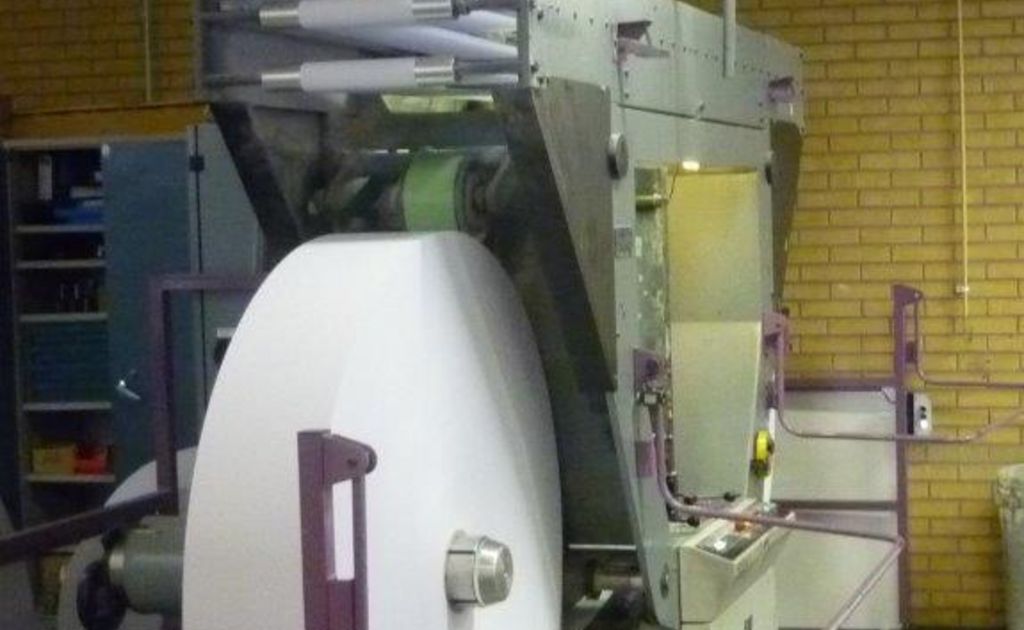

  • W+D 191 paper splicer
  • 4 colour stack type printing stand (5th unit optional)

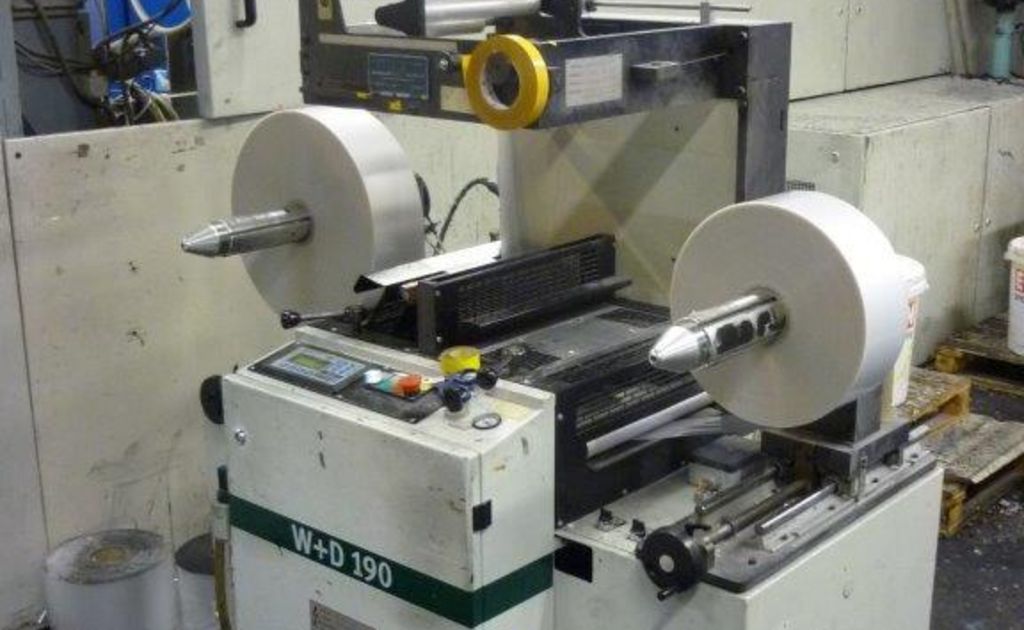

  • Window unit with high-speed patcher and W+D 190 film splicer
  • Extrusion gumming system for side-flaps
  • Vertical drying run
  • Modified to pipe-style fold cylinders at bottom flap and seal flap fold unit
  • Full noise protection covers
  • Seal flap gumming: dextrin (normal gummed)
Machine Condition
Good condition, still in production
