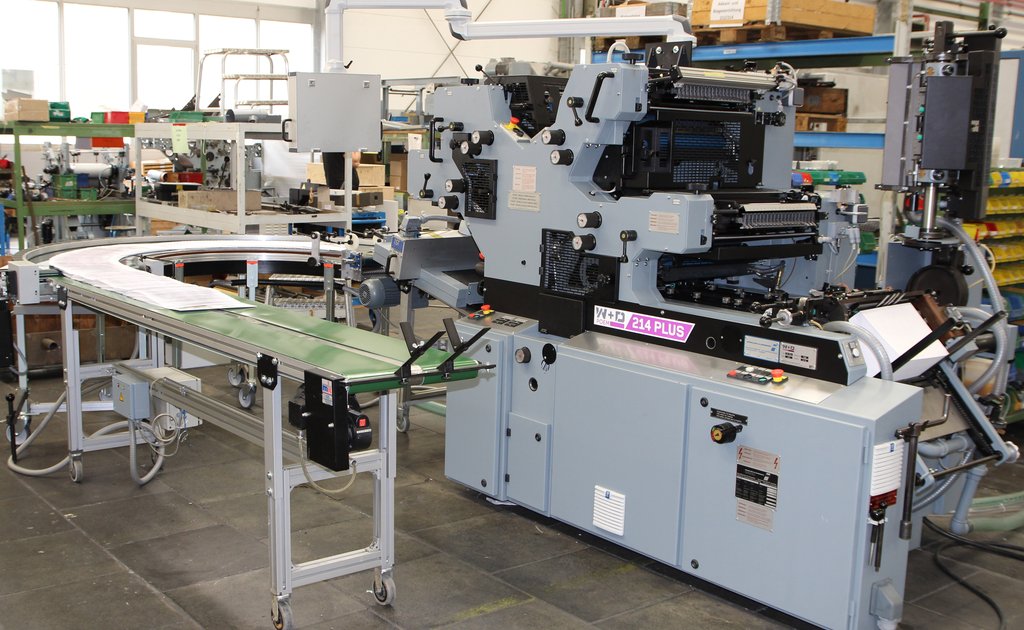

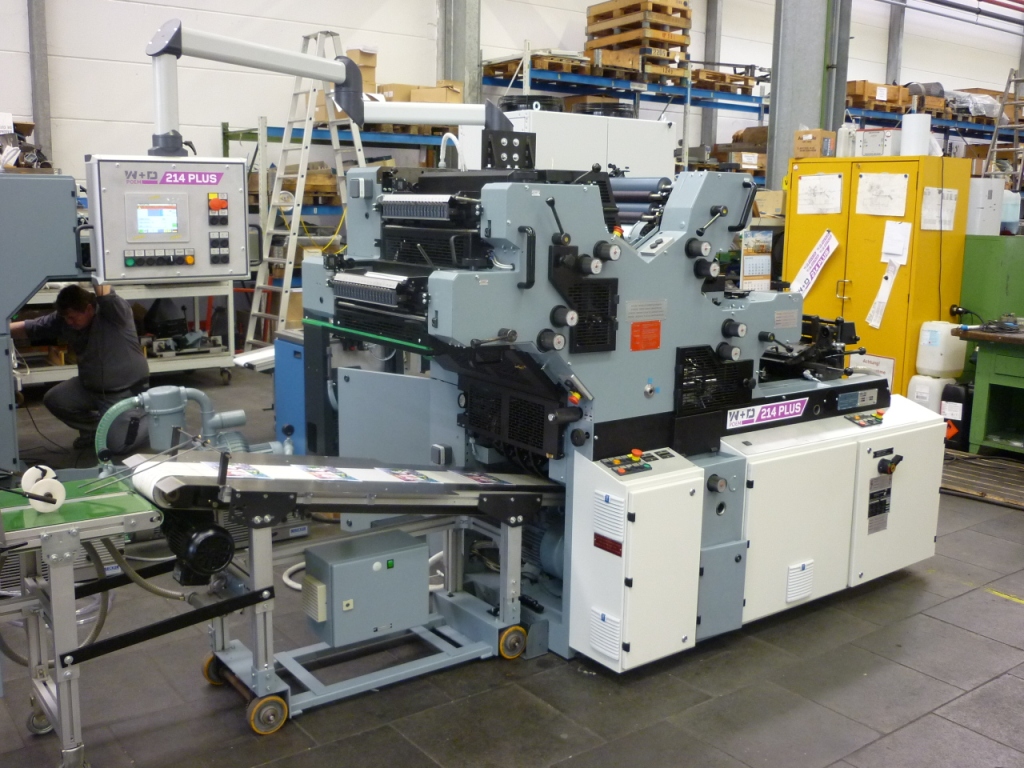

W+D 214Plus, Reference 3907
Description

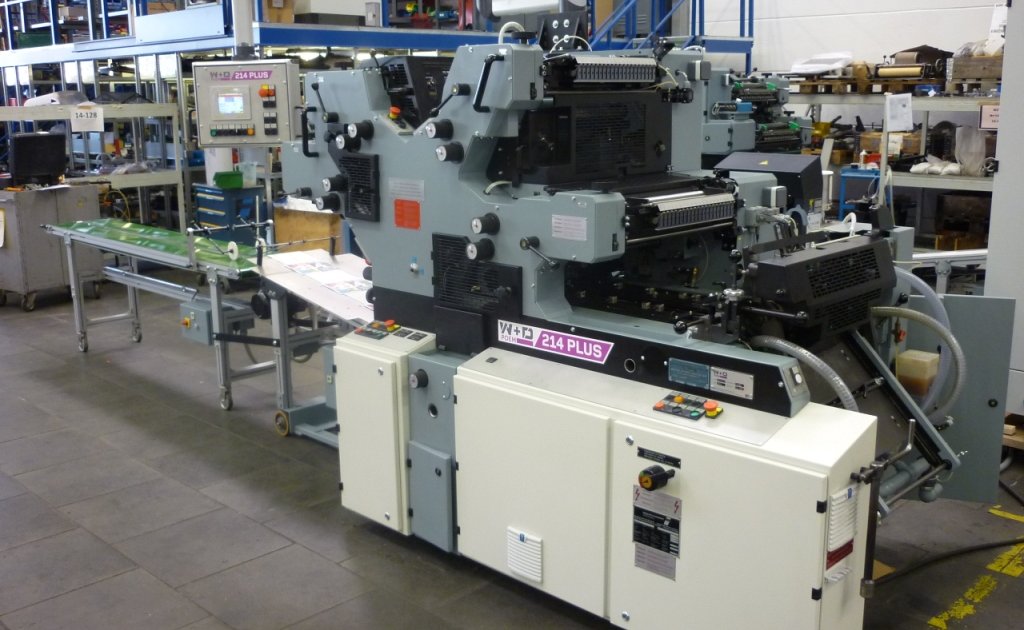

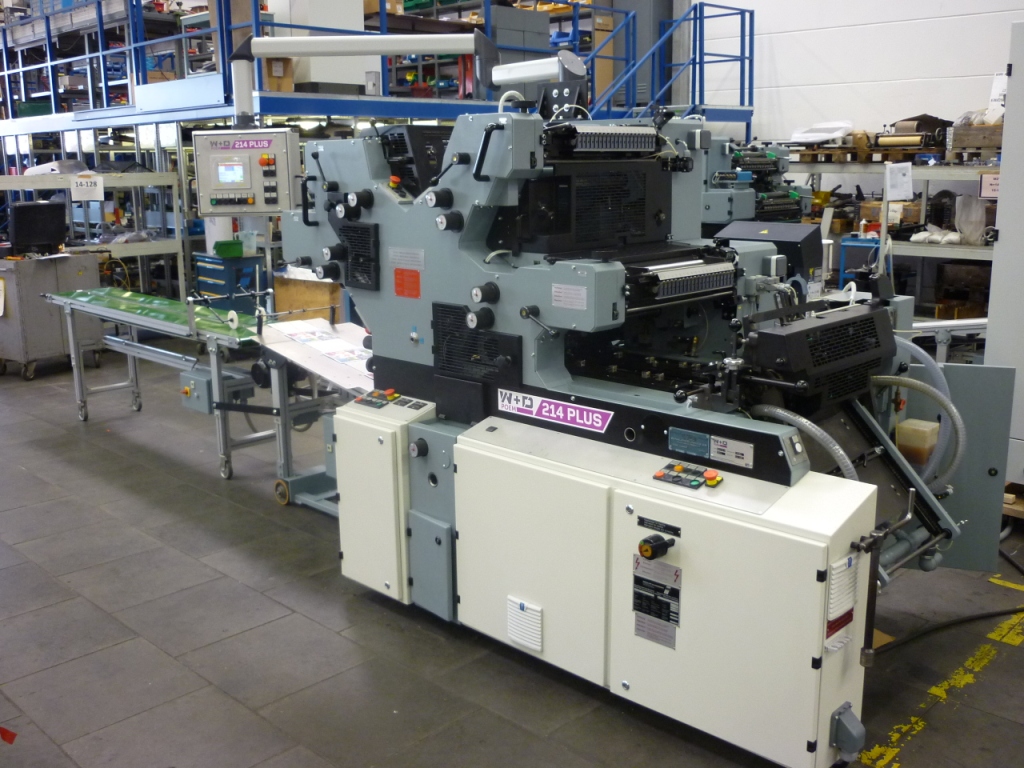

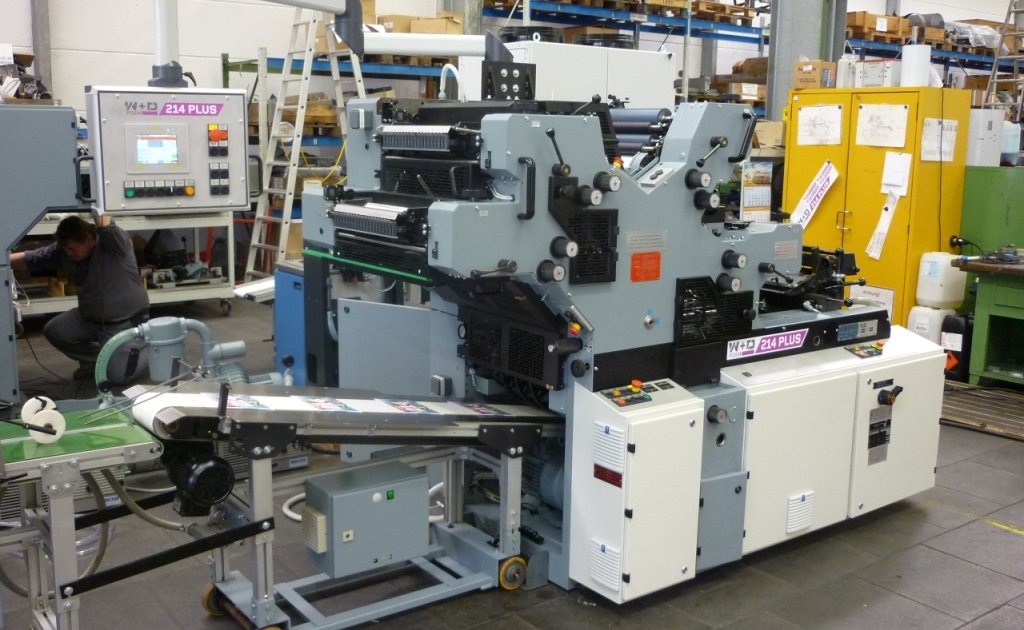

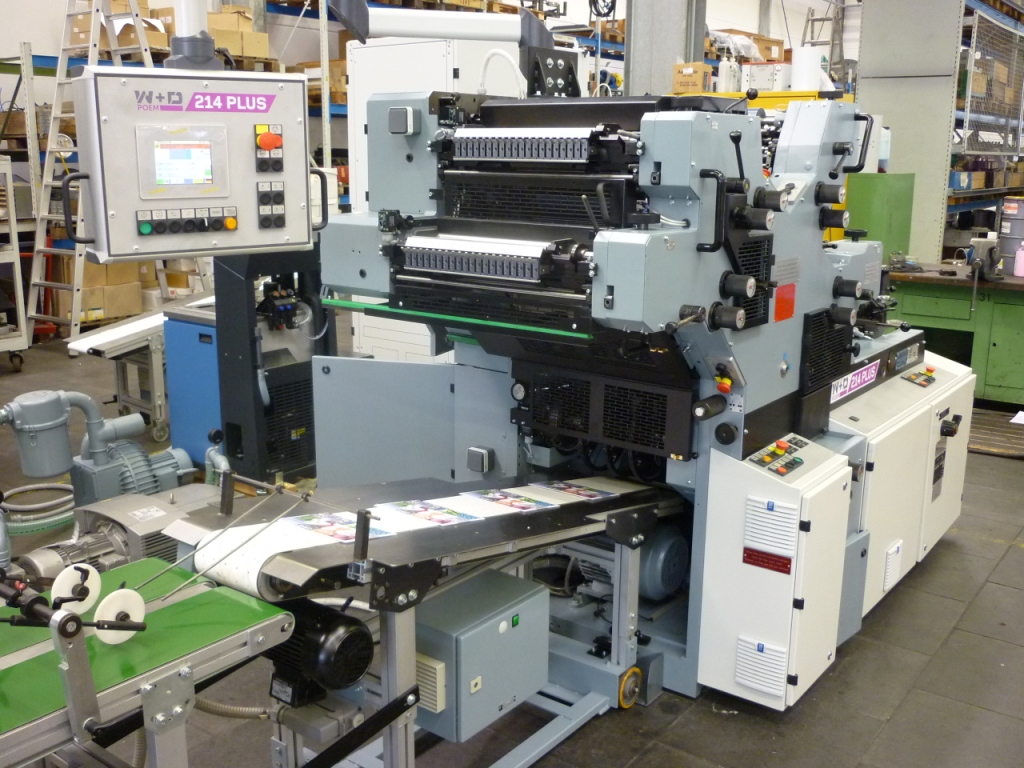

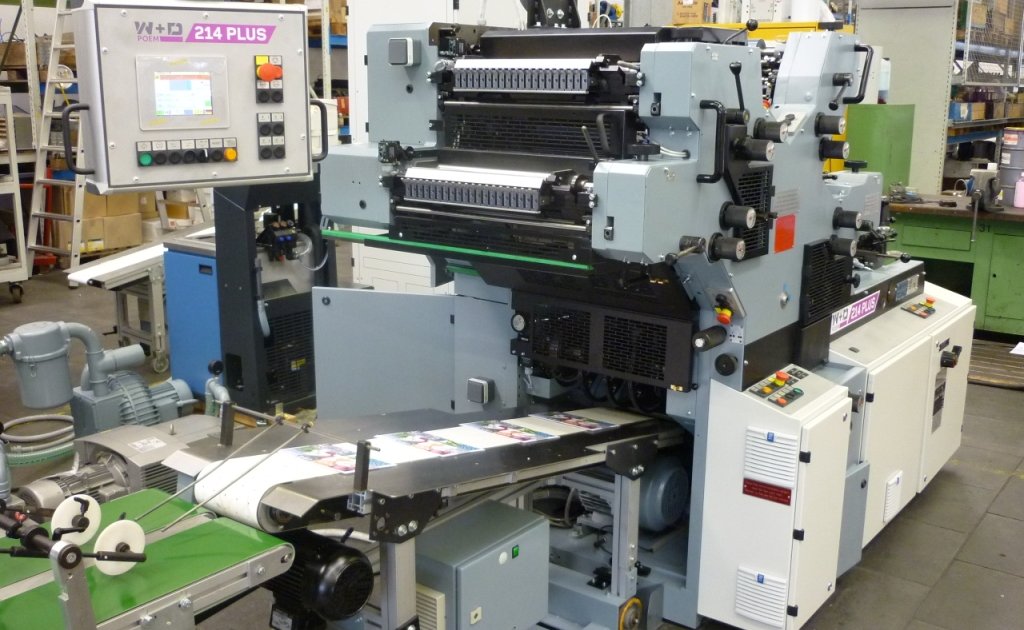

4-color offset printing press for envelopes and pockets
Model
W+D 214Plus
Year
RC 2024
Envelope Type
Envelopes and pockets
Working From
Offset press
Window
Yes
Printing
4 color offset
Technical Data
size range:
- max. 420 x 460 mm / 16 9/16" x 18 1/8"
- min. 110 x 76 mm / 4" x 3"
- printing area: max. 406 x 440 mm = 16" x 17 1/3"
max. output: up to 24.000/h (according to W+D brochure)
Configuration
Equipped with many features of the successful W+D 224:

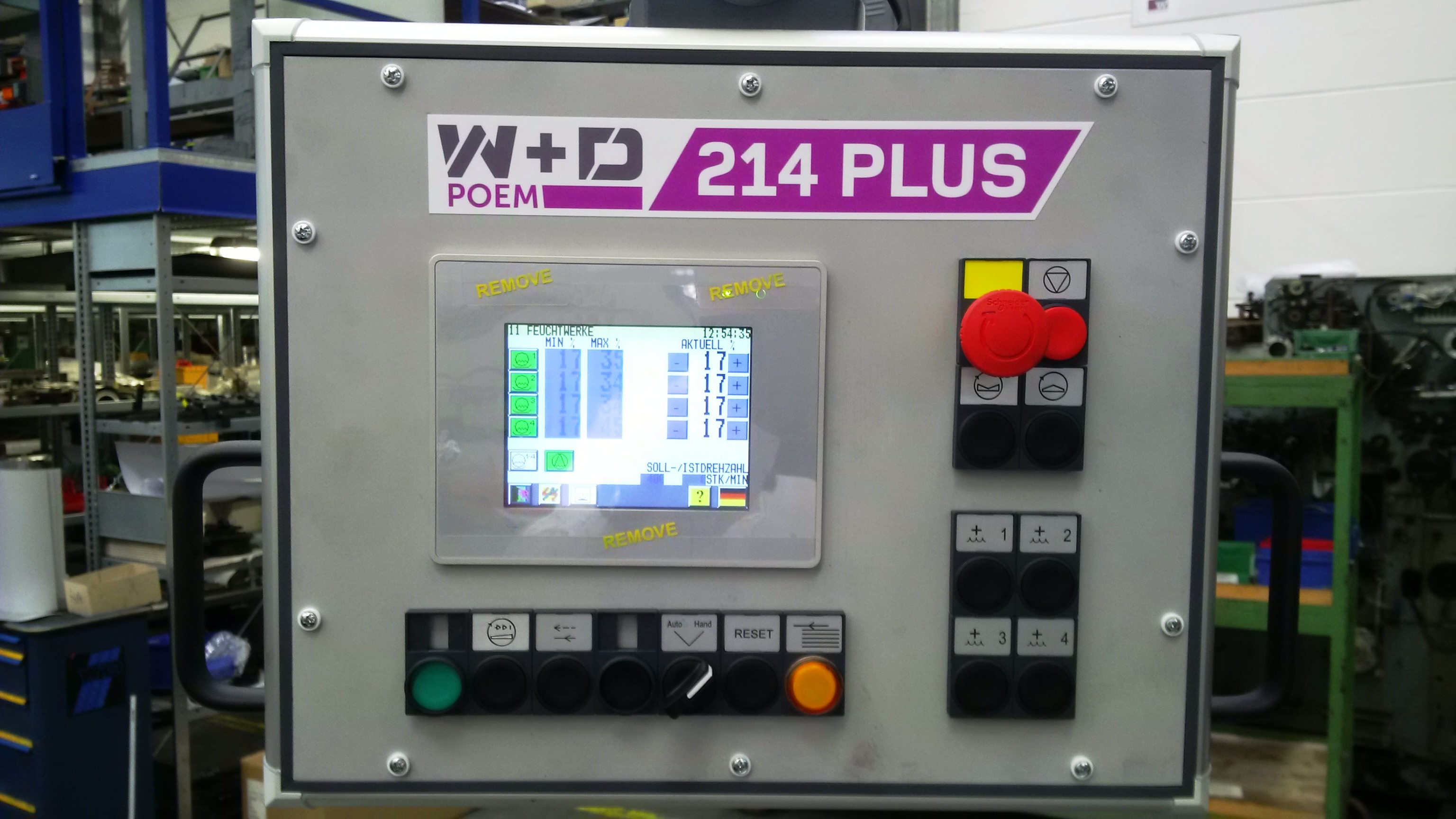

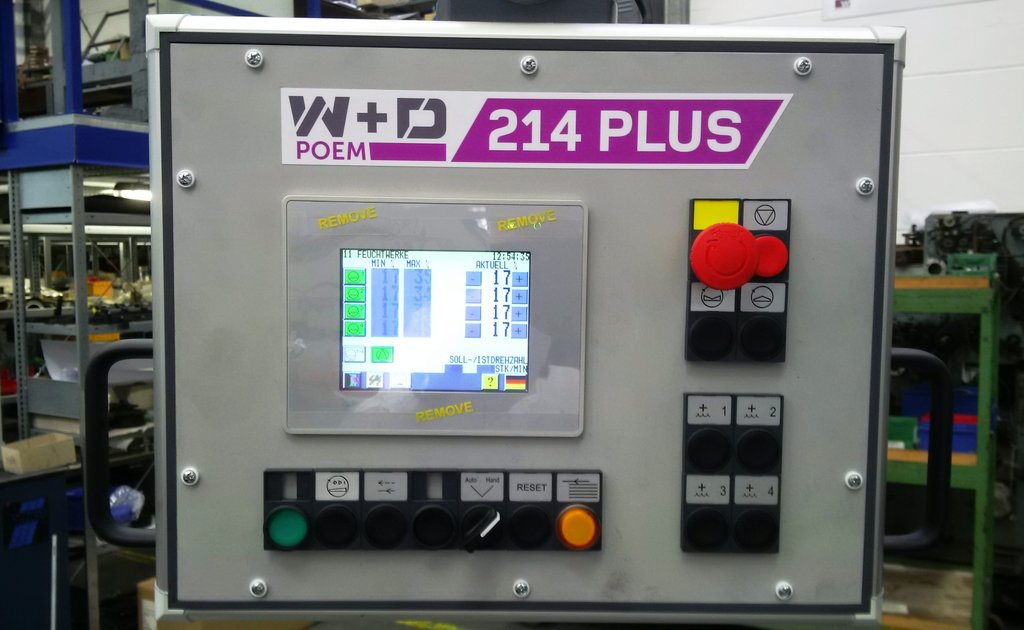

- touch screen operating panel
- dynamic fountain control

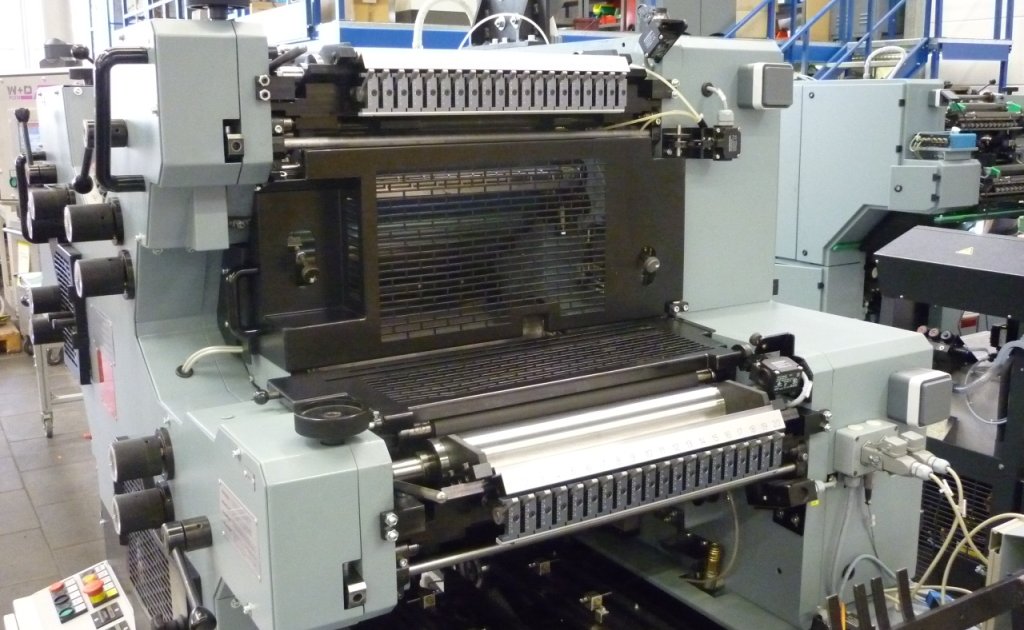

- state of the art inverter driven dampening system
- belt aligner section
- adjustable gripper blocks
- improved cam disc design for gripper System
Standard machine configuration:
- standard feeder
- suction transport table with side channel compressor
- delivery table
- electronic counter
- new water cooling unit
Options:
- top-feeder for window envelopes
- new designed duct system with levers instead of duct screws
- UV-drying System
- speed increase up to 500 rpm
Machine Condition
Rebuilt at POEM workshop
