W+D 249, Reference 4072
Description

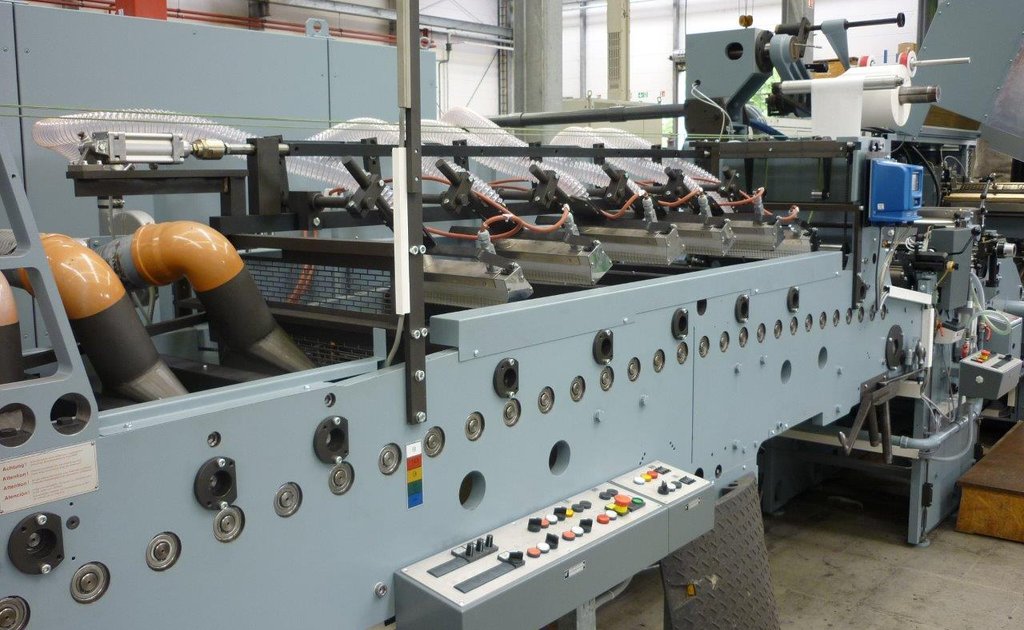

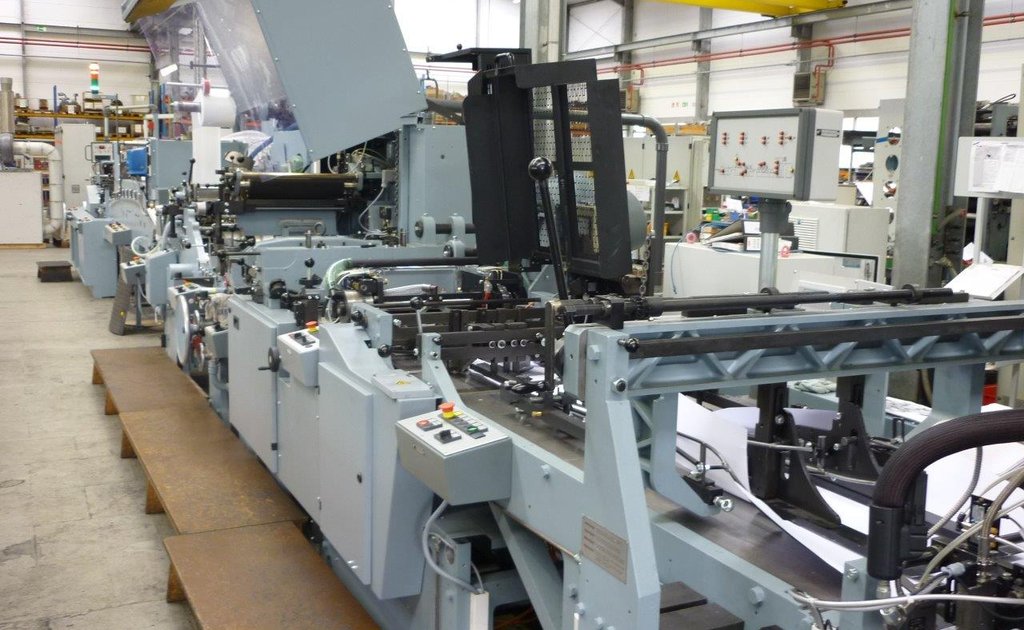

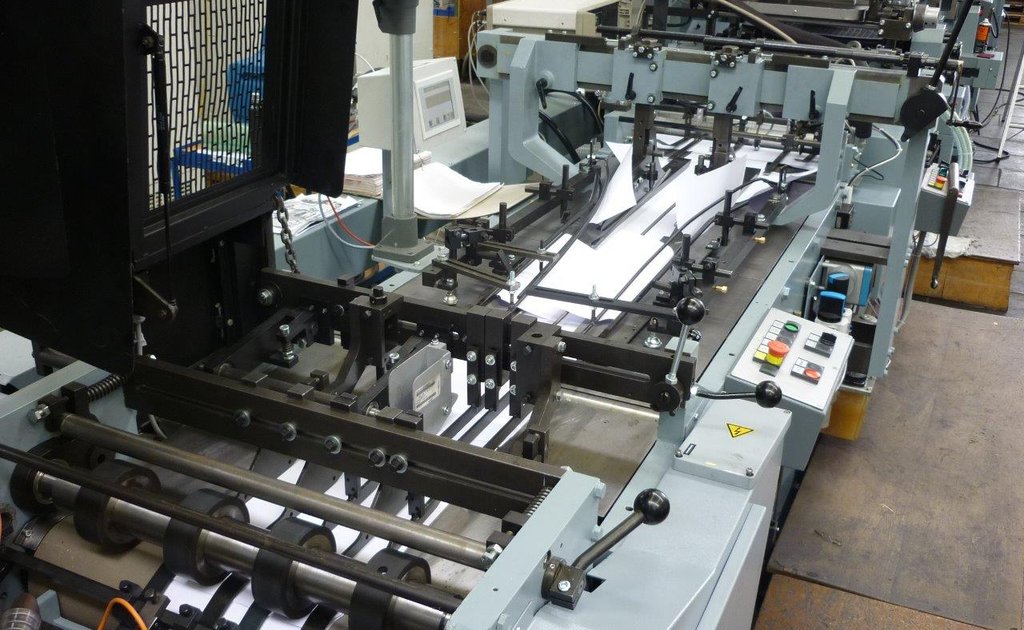

Machine for the production of pockets and booklet envelopes
Model
W+D 249
Year
2000
Envelope Type
Envelopes and pockets
Working From
Reels
Window
Yes
Printing
3 W+D doctor blade printing units
Technical Data
size range:
pockets side seam: min. 127 x 228, max 262 x 420 mm
(10’’ x 16 9/16’’)
pockets center seam: min. 127 x 228, max 305 x 420 mm
(12’’ x 16’’)
wallets min. 127 x 150, max. 420 x 255 mm
Up to 500 envelopes per min. (according to the W+D catalogue)
Configuration
- W+D 191.02 paper splicer

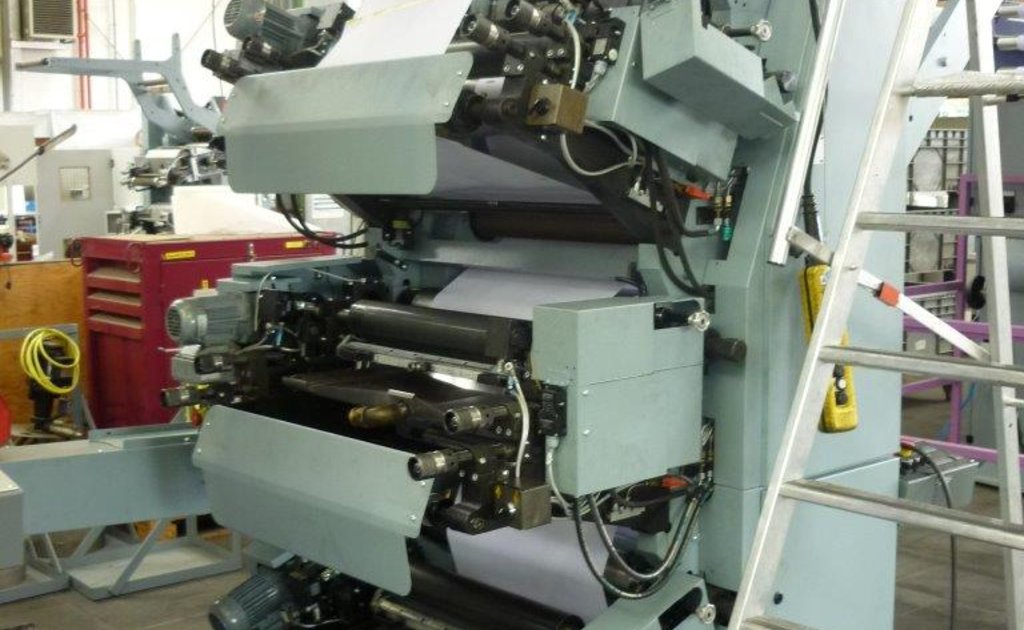

- 3 W+D doctor blade printing units
- Cross score at web modification

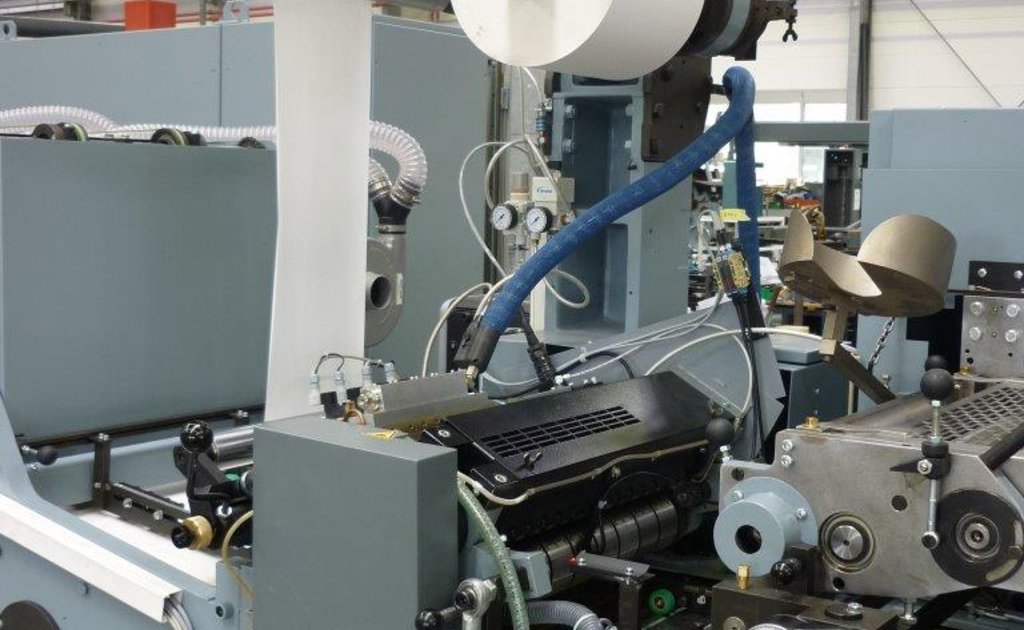

- Window unit with W+D 190 film splicer
- W+D hotmelt peel and seal unit
- DIAX 03 maindrive
- Seal flap gumming: dextrin, latex (open flap) and peel and seal
Machine Condition
Will be reconditioned
