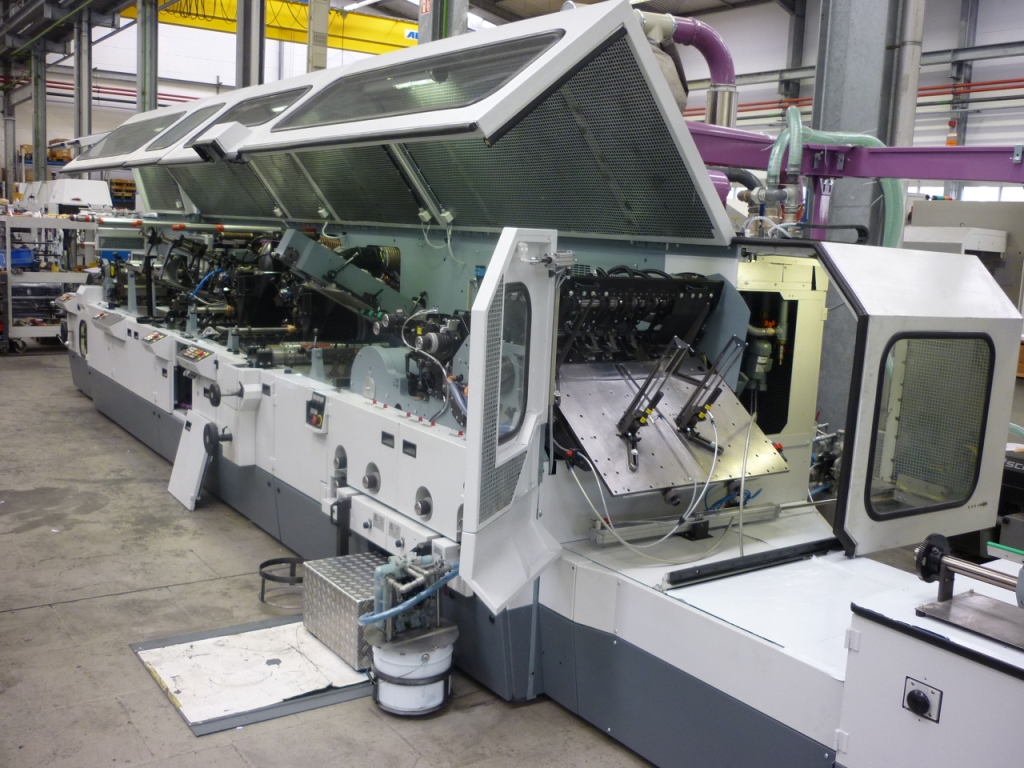

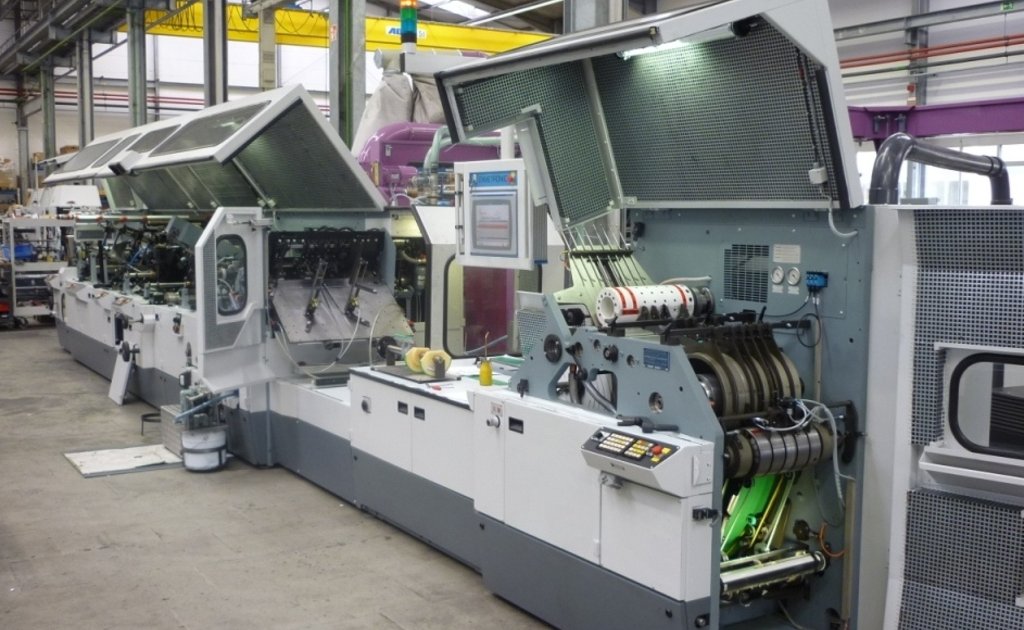

W+D 341GS, Reference 4059

Description
Machine for production of envelopes and pockets with side and centre seam gumming. Modern machine with gearless servo-drive technology.
Model
W+D 341GS
Year
2000
Envelope Type
Envelopes and pockets
Working From
Blanks
Window
Yes
Printing
2+1 flexo
Technical Data

Size range:

envelopes:

  • diagonal: min. 114 x 176, mm max. 254 x 324 mm
  • booklet: min. 114 x 127 mm, max. 270 x 360 mm

pockets:

  •  centre seam: 114 x 178 mm, may. 330 x 406 mm
  •  side seam: 114 x 178 mm, max. 254 x 406 mm

Max. output:

  • Up to 600 envelopes/pockets per minute with dextrin or peel and seal
  • Up to 400 envelopes/pockets per minute with latex gumming



Configuration

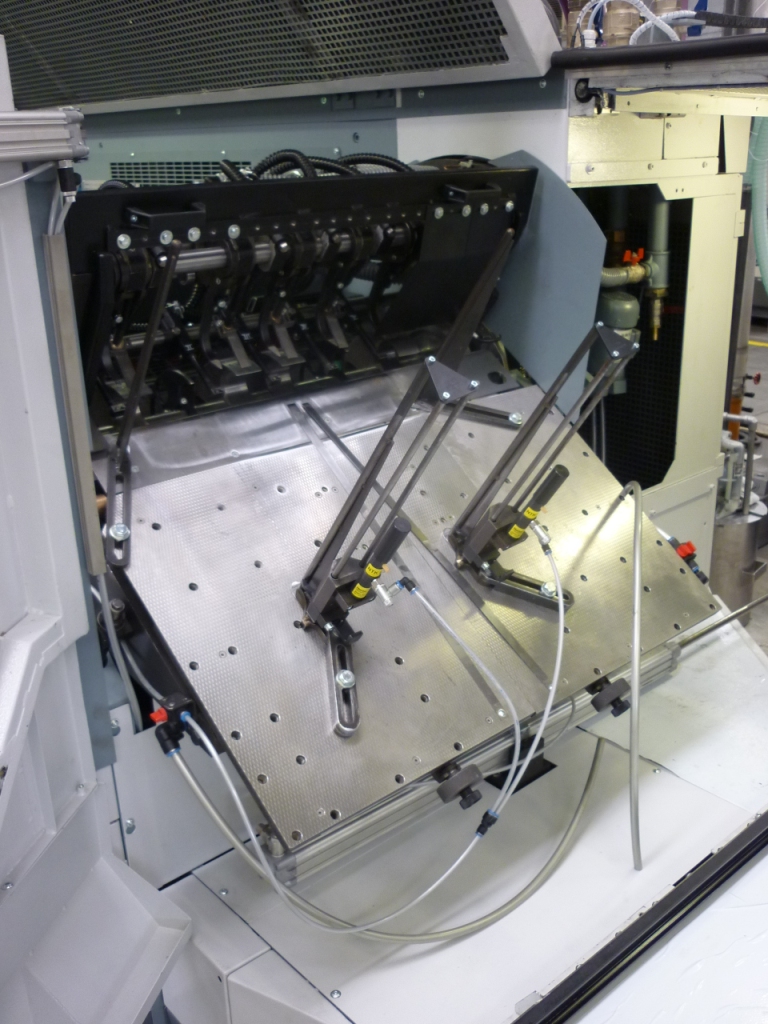

  • blank feeder

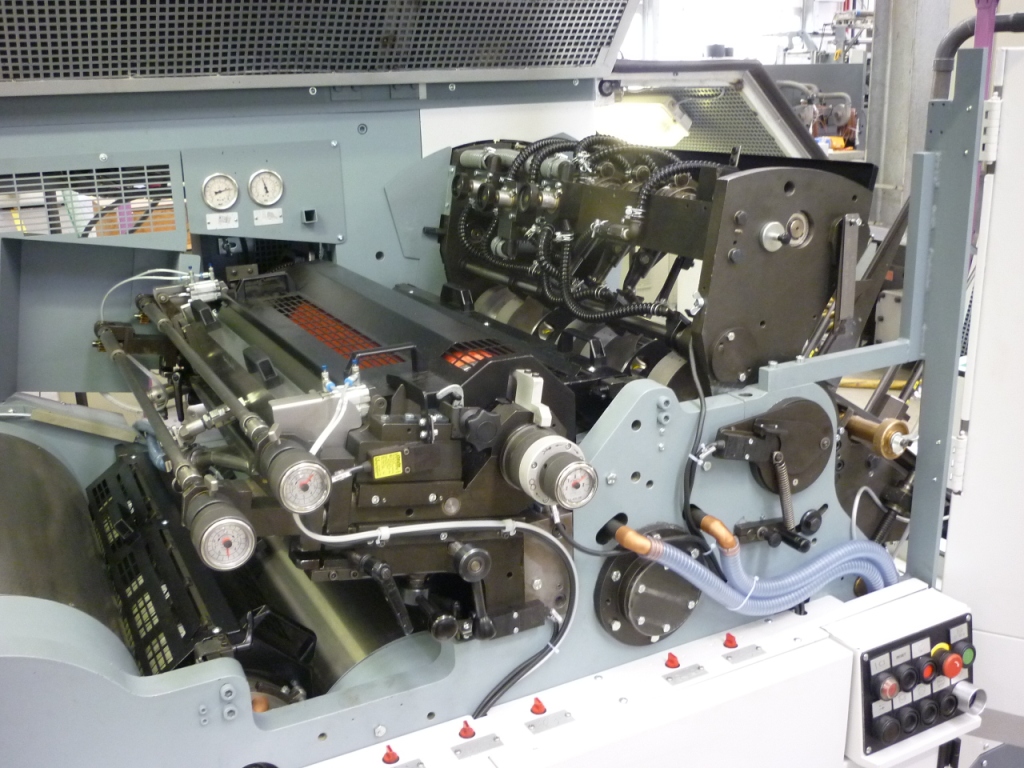

  • 1 Flexo inside and 2 Flexo outside printing units

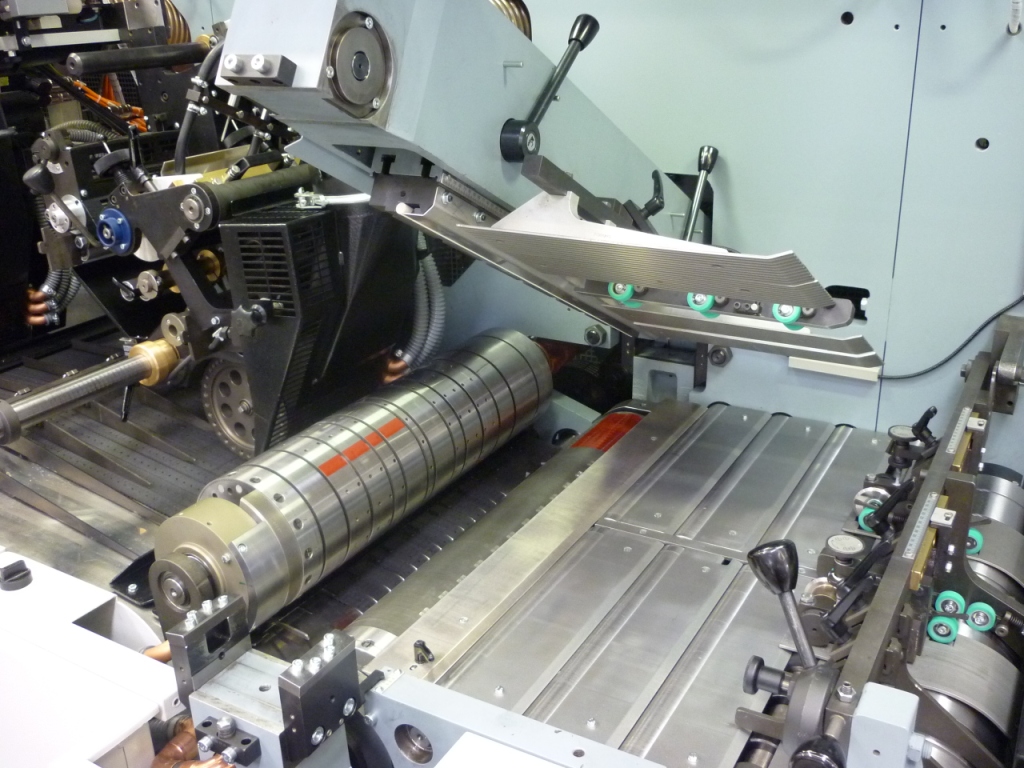

  • window cutting unit with magnetic roller for flexible knives

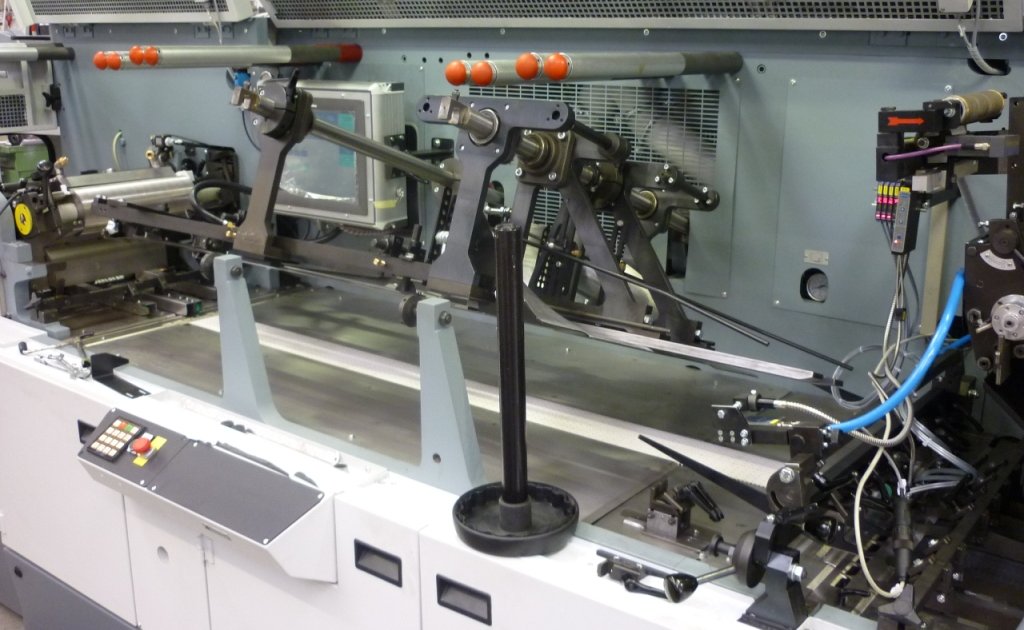

  • window patching unit (wide version) with single unwind
  • W+D hotmelt peel and seal unit
  • machine has been up-graded to INDRADRIVE servo drives
Machine Condition
Will be reconditioned
