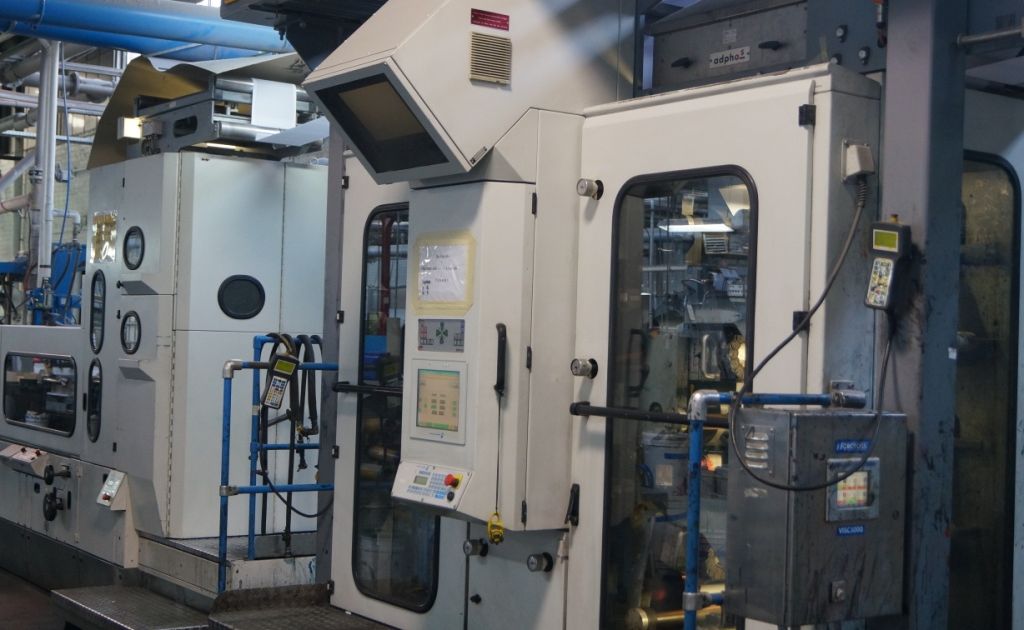

W+D 627RET, Reference 3886
Description
High-speed machine for manufacturing envelopes and pockets with window, working from reel
Model
W+D 627RET
Year
2005
Envelope Type
Envelopes and pockets
Working From
Reels
Window
Yes
Printing
6 color doctor blade
Technical Data
Size range:
- booklet envelopes min. 83 x 120 mm, max. 185 x 330 mm
- pockets centre seam min. 89 x 140 mm max. 176 x 250 mm
- pockets side seam min. 89 x 140 mm max. 176 x 250 mm
Paper weights: from 70g/m² up to 120 g/m²
Max. output:
- envelopes up to 1200 rpm (according to W+D catalogue)
- pockets up to 800 rpm (according to W+D catalogue)
Configuration
- W+D 191 paper reel-splicer with automatic decurler
- W+D 200 N6 printing stand with 6 printing units
- cutting tower with exchangeable cutting bridges
- window cutting unit with W+D magnetic roller
- window patching unit (wide version)
- nozzle gumming unit for side flaps

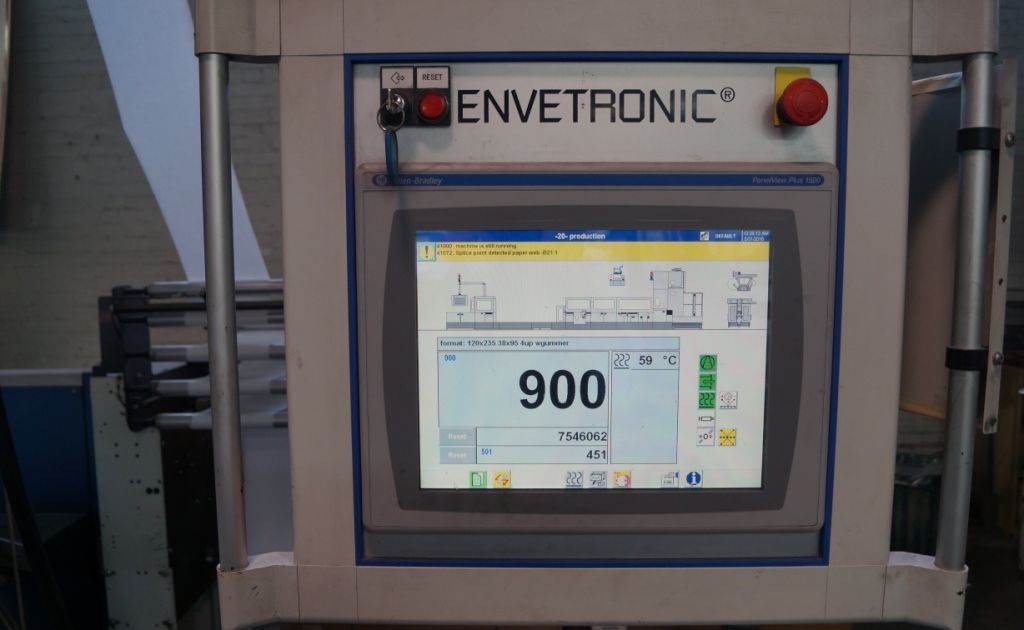

- Versaview PC
- hotmelt peel and seal unit
Machine Condition
Good condition
